- (Exam Topic 6)

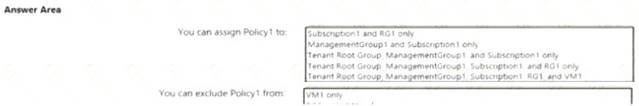

You have an Azure subscription that contains the hierarchy shown in the following exhibit.
You create an Azure Policy definition named Policy1.
To which Azure resources can you assign Policy and which Azure resources can you specify as exclusions from Policy1? To answer, select the appropriate options in the answer
NOTE Each correct selection is worth one point.

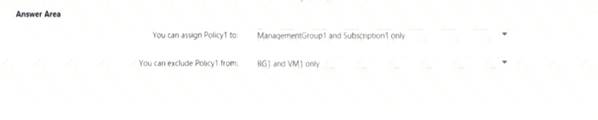

Solution:
Does this meet the goal?
Correct Answer:A
- (Exam Topic 5)
You have an Azure subscription that contains a virtual network named VNet1. VNet1 uses an IP address space of 10.0.0.0/16 and contains the subnets in the following table.
Subnet1 contains a virtual appliance named VM1 that operates as a router. You create a routing table named RT1.
You need to route all inbound traffic to VNet1 through VM1.

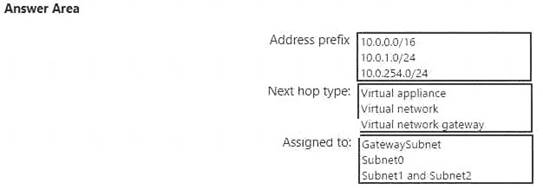

How should you configure RT1? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.
Solution:
Box1 : 10.0.0.0/16
Address prefix in networking refer to the destination IP address range. In this scenario, destination is Vnet1 , hence Address prefix will be the address space of Vnet1.
Box 2 : Virtual appliance
Next hop gets the next hop type and IP address of a packet from a specific VM and NIC. Knowing the next hop helps you determine if traffic is being directed to the intended destination, or whether the traffic is being sent nowhere
Next Hop --> VM1 --> Virtual Appliance (You can specify IP address of VM 1 when configuring next hop as virtual appliance)
Box 3 : GatewaySubnet
In the scenario it is asked for all the inbound traffic to Vnet1. Inbound traffic is flowing through SubnetGW. You need to route all inbound traffic from the VPN gateway to VNet1 through VM1.So its traffic from Gateway subnet only.
Reference:
https://docs.microsoft.com/en-us/azure/virtual-network/manage-route-table#create-a-route-table https://docs.microsoft.com/en-us/azure/network-watcher/network-watcher-next-hop-overview
Does this meet the goal?
Correct Answer:A
- (Exam Topic 4)

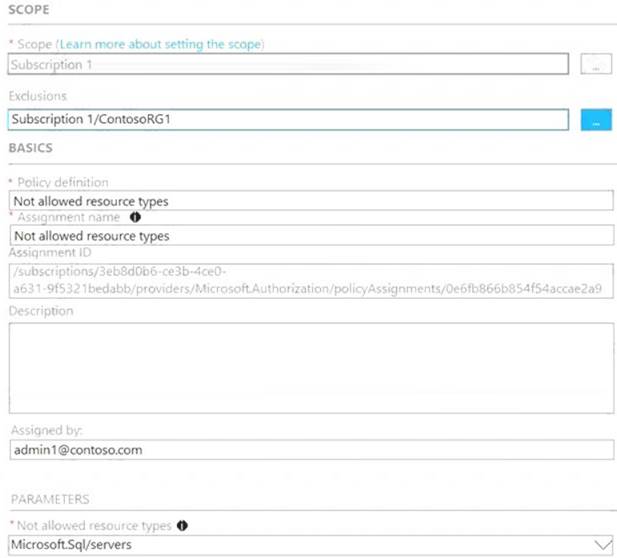

You have an Azure policy as shown in the following exhibit.
What is the effect of the policy?
Which of the following statements are true?
Correct Answer:A
You are prevented from creating Azure SQL servers anywhere in Subscription 1 with the exception of ContosoRG1
Reference:
https://docs.microsoft.com/en-us/azure/governance/policy/concepts/definition-structure
- (Exam Topic 4)

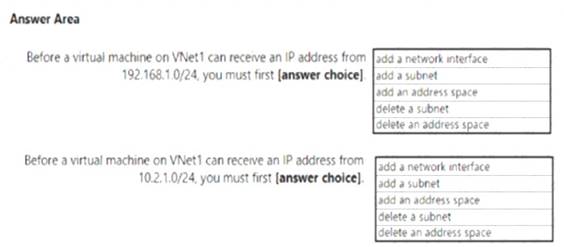

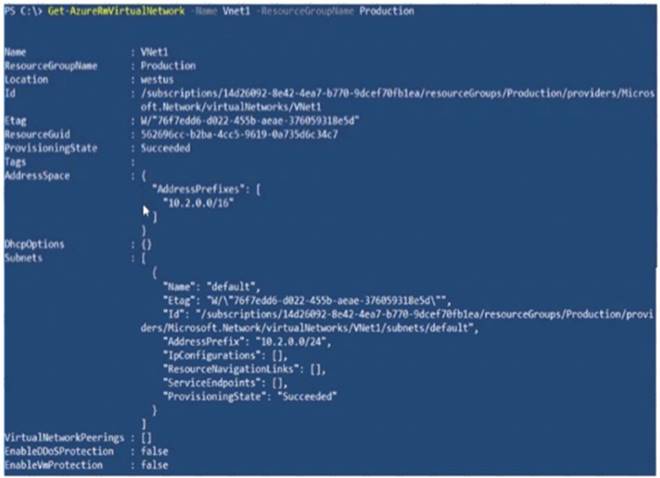

You have a virtual network named VNet1 that has the configuration shown in the following exhibit.
Use the drop-down menus to select the answer choice that completes each statement based on the information presented in the graphic.
NOTE: Each correct selection is worth one point.
Solution:
Box 1: add an address space
Your IaaS virtual machines (VMs) and PaaS role instances in a virtual network automatically receive a private IP address from a range that you specify, based on the address space of the subnet they are connected to. We need to add the 192.168.1.0/24 address space.
Box 2: add a subnet
Address space is present but need to add subnet
References:
https://docs.microsoft.com/en-us/microsoft-365/solutions/cloud-architecture-models?view=o365-worldwide https://docs.microsoft.com/en-us/azure/virtual-network/virtual-networks-static-private-ip-arm-pportal
Does this meet the goal?
Correct Answer:A
- (Exam Topic 4)
You have an Azure subscription.
Users access the resources in the subscription from either home or from customer sites. From home, users must establish a point-to-site VPN to access the Azure resources. The users on the customer sites access the Azure resources by using site-to-site VPNs.
You have a line-of-business app named App1 that runs on several Azure virtual machine. The virtual machines run Windows Server 2016.
You need to ensure that the connections to App1 are spread across all the virtual machines.
What are two possible Azure services that you can use? Each correct answer presents a complete solution. NOTE: Each correct selection is worth one point.
Correct Answer:DE
Line-of-business apps means custom apps. Generally these are used by internal staff members of the company. Azure Application Gateway is a web traffic load balancer that enables you to manage traffic to your web applications.
Internal Load Balancer provides a higher level of availability and scale by spreading incoming requests across virtual machines (VMs) within the virtual network.
Reference:
https://docs.microsoft.com/en-us/azure/load-balancer/load-balancer-overview https://docs.microsoft.com/en-us/azure/application-gateway/overview
