- (Exam Topic 4)
You need to ensure that the solution can meet the scaling requirements for Policy Service. Which Azure Application Insights data model should you use?
Correct Answer:D
Application Insights provides three additional data types for custom telemetry:
Trace - used either directly, or through an adapter to implement diagnostics logging using an instrumentation framework that is familiar to you, such as Log4Net or System.Diagnostics.
Event - typically used to capture user interaction with your service, to analyze usage patterns. Metric - used to report periodic scalar measurements.
Scenario:
Policy service must use Application Insights to automatically scale with the number of policy actions that it is performing.
Reference:
https://docs.microsoft.com/en-us/azure/azure-monitor/app/data-model
- (Exam Topic 7)
You develop and deploy an ASP.NET web app to Azure App Service. You use Application Insights telemetry to monitor the app.
You must test the app to ensure that the app is available and responsive from various points around the world and at regular intervals. If the app is not responding, you must send an alert to support staff.
You need to configure a test for the web app.
Which two test types can you use? Each correct answer presents a complete solution.
NOTE: Each correct selection is worth one point.
Correct Answer:BC
There are three types of availability tests:
URL ping test: a simple test that you can create in the Azure portal. Multi-step web test: A recording of a sequence of web requests, which can be played back to test more complex scenarios. Multi-step web tests are created in Visual Studio Enterprise and uploaded to the portal for execution. Custom Track Availability Tests: If you decide to create a custom application to run availability tests, the TrackAvailability() method can be used to send the results to Application Insights.
Reference:
https://docs.microsoft.com/en-us/azure/azure-monitor/app/monitor-web-app-availability
- (Exam Topic 7)
You are developing an ASP.NET Core website that can be used to manage photographs which are stored in Azure Blob Storage containers.
Users of the website authenticate by using their Azure Active Directory (Azure AD) credentials.
You implement role-based access control (RBAC) role permission on the containers that store photographs.
You assign users to RBAC role.
You need to configure the website’s Azure AD Application so that user’s permissions can be used with the Azure Blob containers.

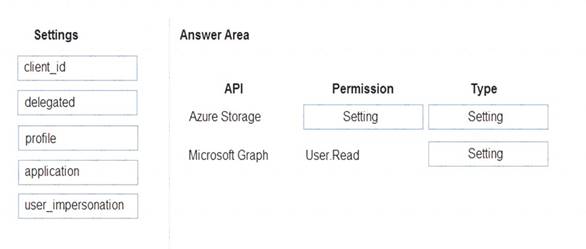

How should you configure the application? To answer, drag the appropriate setting to the correct location. Each setting may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content.
NOTE: Each correct selection is worth one point.
Solution:
Box 1: user_impersonation
Box 2: delegated Example:
* 1. Select the API permissions section
* 2. Click the Add a permission button and then: Ensure that the My APIs tab is selected
* 3. In the list of APIs, select the API TodoListService-aspnetcore.
* 4. In the Delegated permissions section, ensure that the right permissions are checked: user_impersonation. 5.Select the Add permissions button.
Box 3: delegated Example
* 1. Select the API permissions section
* 2. Click the Add a permission button and then, Ensure that the Microsoft APIs tab is selected
* 3. In the Commonly used Microsoft APIs section, click on Microsoft Graph
* 4. In the Delegated permissions section, ensure that the right permissions are checked: User.Read. Use the search box if necessary.
* 5. Select the Add permissions button References:
https://docs.microsoft.com/en-us/samples/azure-samples/active-directory-dotnet-webapp-webapi-openidconnect
Does this meet the goal?
Correct Answer:A
- (Exam Topic 7)
Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.
After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.
You develop a software as a service (SaaS) offering to manage photographs. Users upload photos to a web service which then stores the photos in Azure Storage Blob storage. The storage account type is
General-purpose V2.
When photos are uploaded, they must be processed to produce and save a mobile-friendly version of the image. The process to produce a mobile-friendly version of the image must start in less than one minute.
You need to design the process that starts the photo processing. Solution: Trigger the photo processing from Blob storage events. Does the solution meet the goal?
Correct Answer:B
You need to catch the triggered event, so move the photo processing to an Azure Function triggered from the blob upload
Note: Azure Storage events allow applications to react to events. Common Blob storage event scenarios include image or video processing, search indexing, or any file-oriented workflow.
Events are pushed using Azure Event Grid to subscribers such as Azure Functions, Azure Logic Apps, or even to your own http listener.
Note: Only storage accounts of kind StorageV2 (general purpose v2) and BlobStorage support event integration. Storage (general purpose v1) does not support integration with Event Grid.
Reference:
https://docs.microsoft.com/en-us/azure/storage/blobs/storage-blob-event-overview
- (Exam Topic 1)
You need to migrate on-premises shipping data to Azure. What should you use?
Correct Answer:D
Migrate from on-premises or cloud implementations of MongoDB to Azure Cosmos DB with minimal downtime by using Azure Database Migration Service. Perform resilient migrations of MongoDB data at scale and with high reliability.
Scenario: Data migration from on-premises to Azure must minimize costs and downtime.
The application uses MongoDB JSON document storage database for all container and transport information. References:
https://azure.microsoft.com/en-us/updates/mongodb-to-azure-cosmos-db-online-and-offline-migrations-are-now
