- (Exam Topic 5)

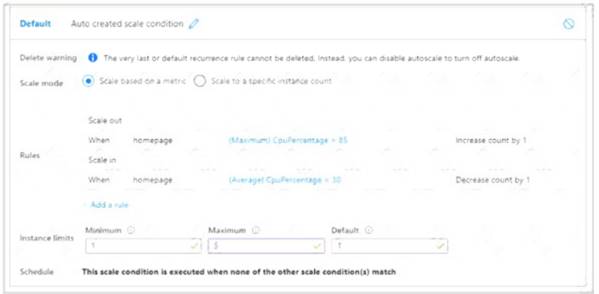

You have the App Service plan shown in the following exhibit.

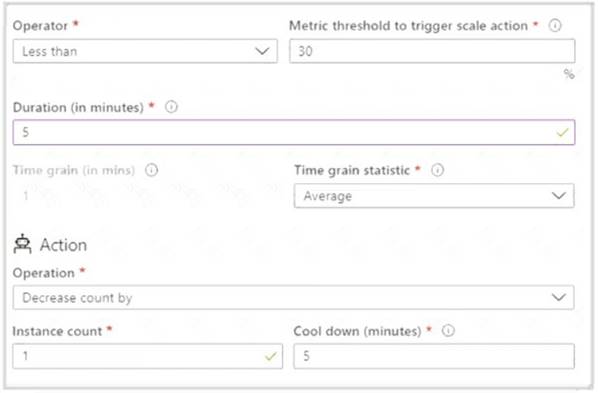

The scale-in settings for the App Service plan are configured as shown in the following exhibit.
The scale out rule is configured with the same duration and cool down tile as the scale in rule.

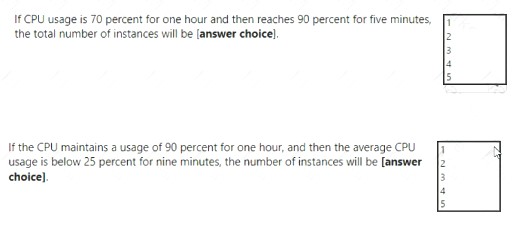

Use the drop-down menus to select the answer choice that completes each statement based on the information presented in the graphic.

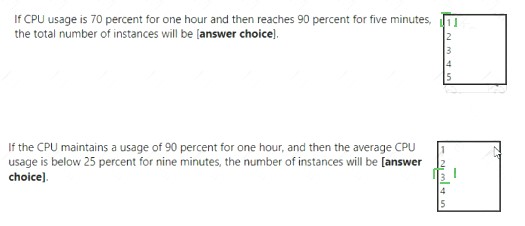

Solution:
Does this meet the goal?
Correct Answer:A
- (Exam Topic 4)
You have an Azure subscription. The subscription includes a virtual network named VNet1. Currently, VNet1 does not contain any subnets.
You plan to create subnets on VNet1 and to use application security groups to restrict the traffic between the subnets. You need to create the application security groups and to assign them to the subnets.

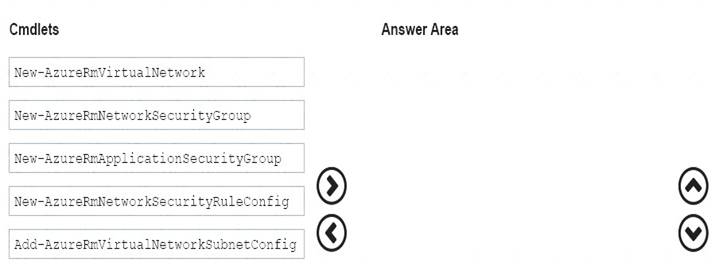

Which four cmdlets should you run in sequence? To answer, move the appropriate cmdlets from the list of cmdlets to the answer area and arrange them in the correct order.
Solution:
Step 1: New-AzureRmNetworkSecurityRuleConfig
Step 2: New-AzureRmNetworkSecurityGroup
Step 3: New-AzureRmVirtualNetworkSubnetConfig
Step 4: New-AzureRmVirtualNetwork
Example: Create a virtual network with a subnet referencing a network security group
New-AzureRmResourceGroup -Name TestResourceGroup -Location centralus
$rdpRule = New-AzureRmNetworkSecurityRuleConfig -Name rdp-rule -Description "Allow RDP" -Access Allow -Protocol Tcp -Direction Inbound -Priority 100 -SourceAddressPrefix Internet -SourcePortRange *
-DestinationAddressPrefix * -DestinationPortRange 3389
$networkSecurityGroup = New-AzureRmNetworkSecurityGroup -ResourceGroupName TestResourceGroup
-Location centralus -Name "NSG-FrontEnd" -SecurityRules $rdpRule
$frontendSubnet = New-AzureRmVirtualNetworkSubnetConfig -Name frontendSubnet -AddressPrefix "10.0.1.0/24" -NetworkSecurityGroup $networkSecurityGroup
$backendSubnet = New-AzureRmVirtualNetworkSubnetConfig -Name backendSubnet -AddressPrefix "10.0.2.0/24" -NetworkSecurityGroup $networkSecurityGroup
New-AzureRmVirtualNetwork -Name MyVirtualNetwork -ResourceGroupName TestResourceGroup
-Location centralus -AddressPrefix "10.0.0.0/16" -Subnet $frontendSubnet,$backendSubnet
References:
https://docs.microsoft.com/en-us/powershell/module/azurerm.network/new-azurermvirtualnetwork?view=azurer
Does this meet the goal?
Correct Answer:A
- (Exam Topic 6)
You have a service deployed to a Kubernetes cluster.
Another application needs to access the service via the private IP address of the pod.
Which of the following would you define as the networking type for the cluster to meet this requirement?
Correct Answer:B
Azure container networking plugin : Correct Choice
With the Azure container networking plugin , every pod gets an IP address allocated.
With Azure CNI, every pod gets an IP address from the subnet and can be accessed directly. These IP addresses must be unique across your network space, and must be planned in advance. Each node has a configuration parameter for the maximum number of pods that it supports. The equivalent number of IP addresses per node are then reserved up front for that node. This approach requires more planning, as can otherwise lead to IP address exhaustion or the need to rebuild clusters in a larger subnet as your application demands grow.
Nodes use the Azure Container Networking Interface (CNI) Kubernetes plugin.
Kubenet : Incorrect Choice
The kubenet networking option is the default configuration for AKS cluster creation. With kubenet, nodes an IP address from the Azure virtual network subnet. Pods receive an IP address from a logically different address space to the Azure virtual network subnet of the nodes.
Service Endpoints : Incorrect Choice
Capabilities like service endpoints or UDRs are supported with both kubenet and Azure CNI, the support policies for AKS define what changes you can make. For example:
· If you manually create the virtual network resources for an AKS cluster, you're supported when configuring your own UDRs or service endpoints.
· If the Azure platform automatically creates the virtual network resources for your AKS cluster, it isn't supported to manually change those AKS-managed resources to configure your own UDRs or service endpoints.
Network security groups : Incorrect Choice
A network security group filters traffic for VMs, such as the AKS nodes. As you create Services, such as a LoadBalancer, the Azure platform automatically configures any network security group rules that are needed.
Reference:
https://docs.microsoft.com/en-us/azure/aks/concepts-network
- (Exam Topic 6)
You have an Azure subscription.
You enable multi-factor authentication for all users.
Some users report that the email applications on their mobile device cannot connect to their Microsoft
Exchange Online mailbox. The users can access Exchange Online by using a web browser and from Microsoft Outlook 2016 on their computer.
You need to ensure that the users can use the email applications on their mobile device. What should you instruct the users to do?
Correct Answer:A
If you're enabled for multi-factor authentication, make sure that you have set up app passwords.
Note: During your initial two-factor verification registration process, you're provided with a single app password. If you require more than one, you'll have to create them yourself.
Go to the Additional security verification page. References:
https://docs.microsoft.com/en-us/office365/troubleshoot/sign-in/sign-in-to-office-365-azure-intune https://docs.microsoft.com/sv-se/azure/active-directory/user-help/multi-factor-authentication-end-user-app-pass
- (Exam Topic 6)
You plan to move services from your on-premises network to Azure.
You identify several virtual machines that you believe can be hosted in Azure. The virtual machines are shown in the following table.
Which two virtual machines can you access by using Azure migrate? Each correct answer presents a complete solution.
NOTE: Each correct selection is worth one point.
Correct Answer:CE
Azure Migrate provides a centralized hub to assess and migrate to Azure on-premises servers, infrastructure, applications, and data. It provides the following:
Unified migration platform: A single portal to start, run, and track your migration to Azure.
Range of tools: A range of tools for assessment and migration. Azure Migrate tools include Server Assessment and Azure Migrate: Server Migration. Azure Migrate also integrates with other Azure services and tools, and with independent software vendor (ISV) offerings.
Assessment and migration: In the Azure Migrate hub, you can assess and migrate:
Servers: Assess on-premises servers and migrate them to Azure virtual machines or Azure VMware Solution (AVS) (Preview).
Databases: Assess on-premises databases and migrate them to Azure SQL Database or to SQL Managed Instance.
Web applications: Assess on-premises web applications and migrate them to Azure App Service by using the Azure App Service Migration Assistant.
Virtual desktops: Assess your on-premises virtual desktop infrastructure (VDI) and migrate it to Windows Virtual Desktop in Azure.
Data: Migrate large amounts of data to Azure quickly and cost-effectively using Azure Data Box products. Based on this information let's analyze each option:
NYC-FS01 : Its role "Server" fall under above categories. Hence it can be accessed by using Azure migrat BOS-DB01 : Its role "server" fall under above categories. Hence it can be accessed by using Azure migrate
Sea-CA01 : Its role "CA" does not fall under above categories. Hence it can not be accessed by using Azure migrate.
Hou-NW01 : Its role "DNS" does not fall under above categories. Hence it can not be accessed by using Azure migrate.
Sea-DC01 : Its role "DC" does not fall under above categories. Hence it can not be accessed by using Azure migrate.
Reference:
https://docs.microsoft.com/en-us/azure/migrate/migrate-services-overview
